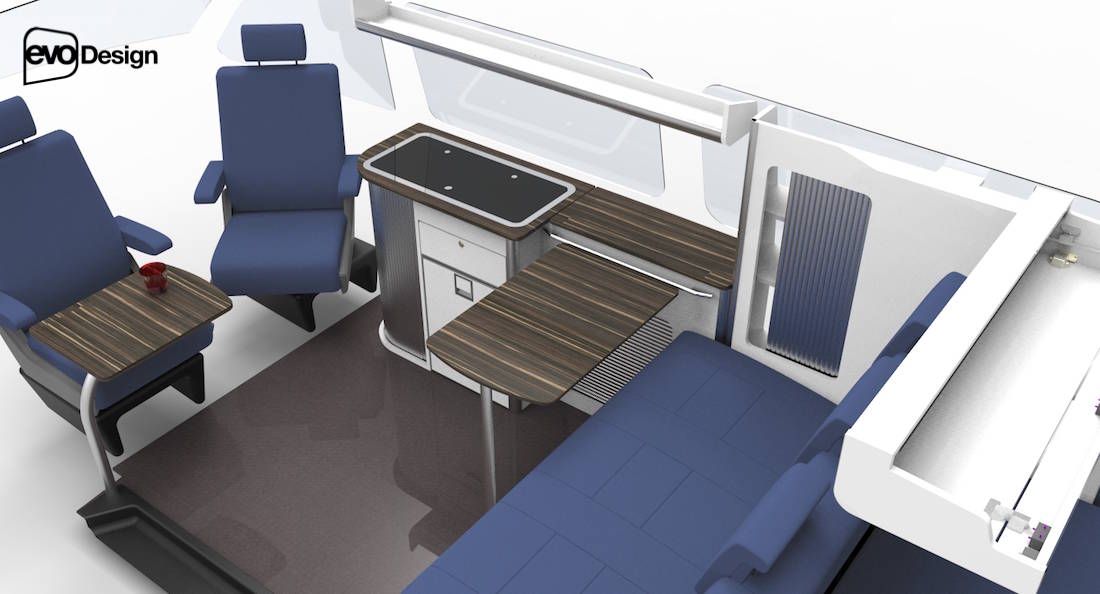

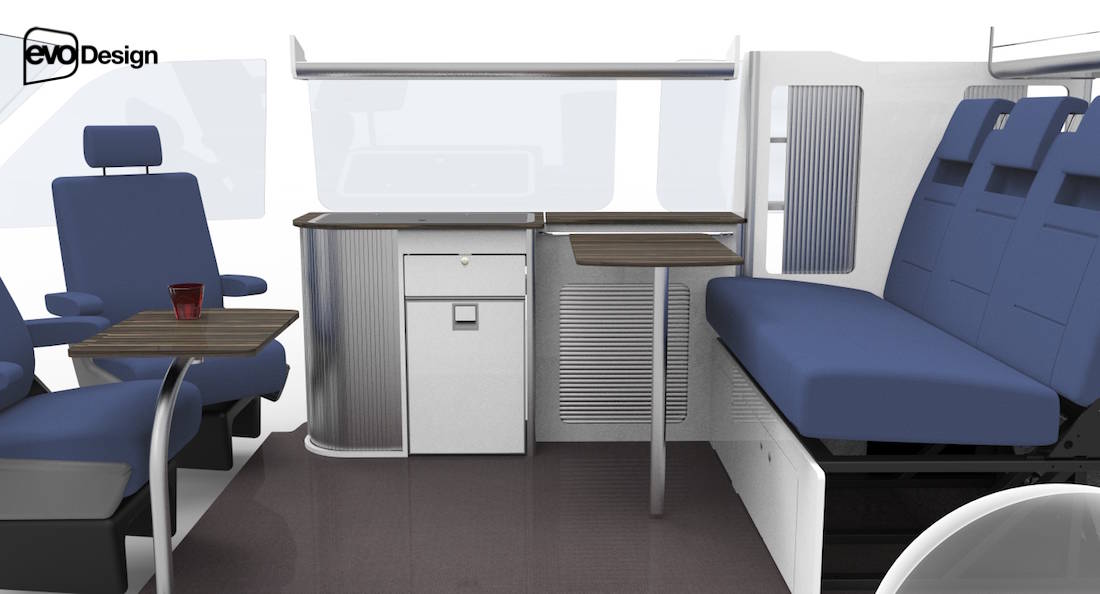

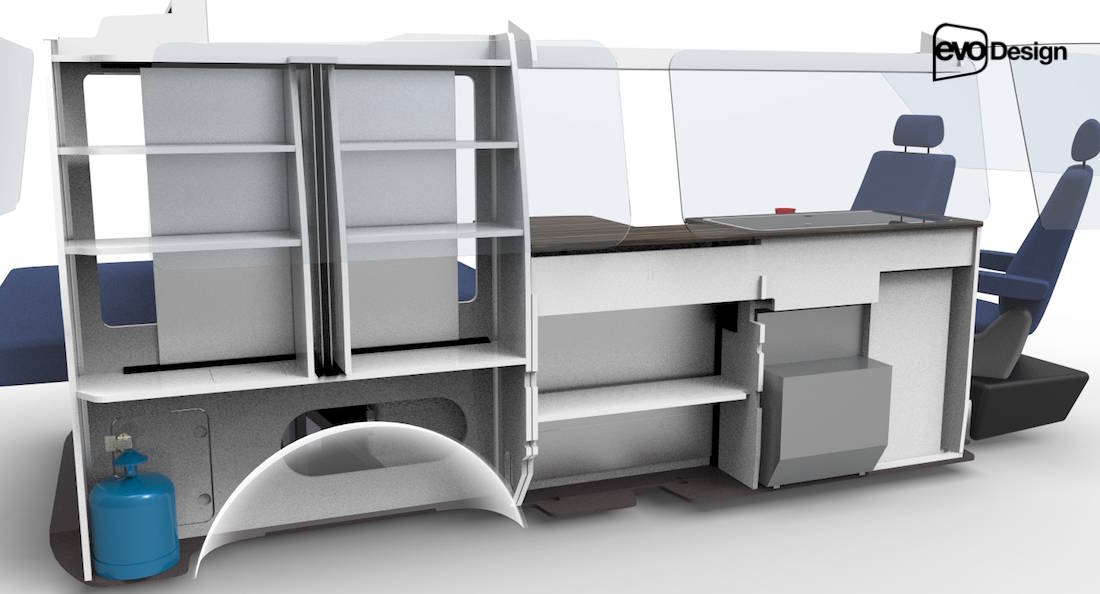

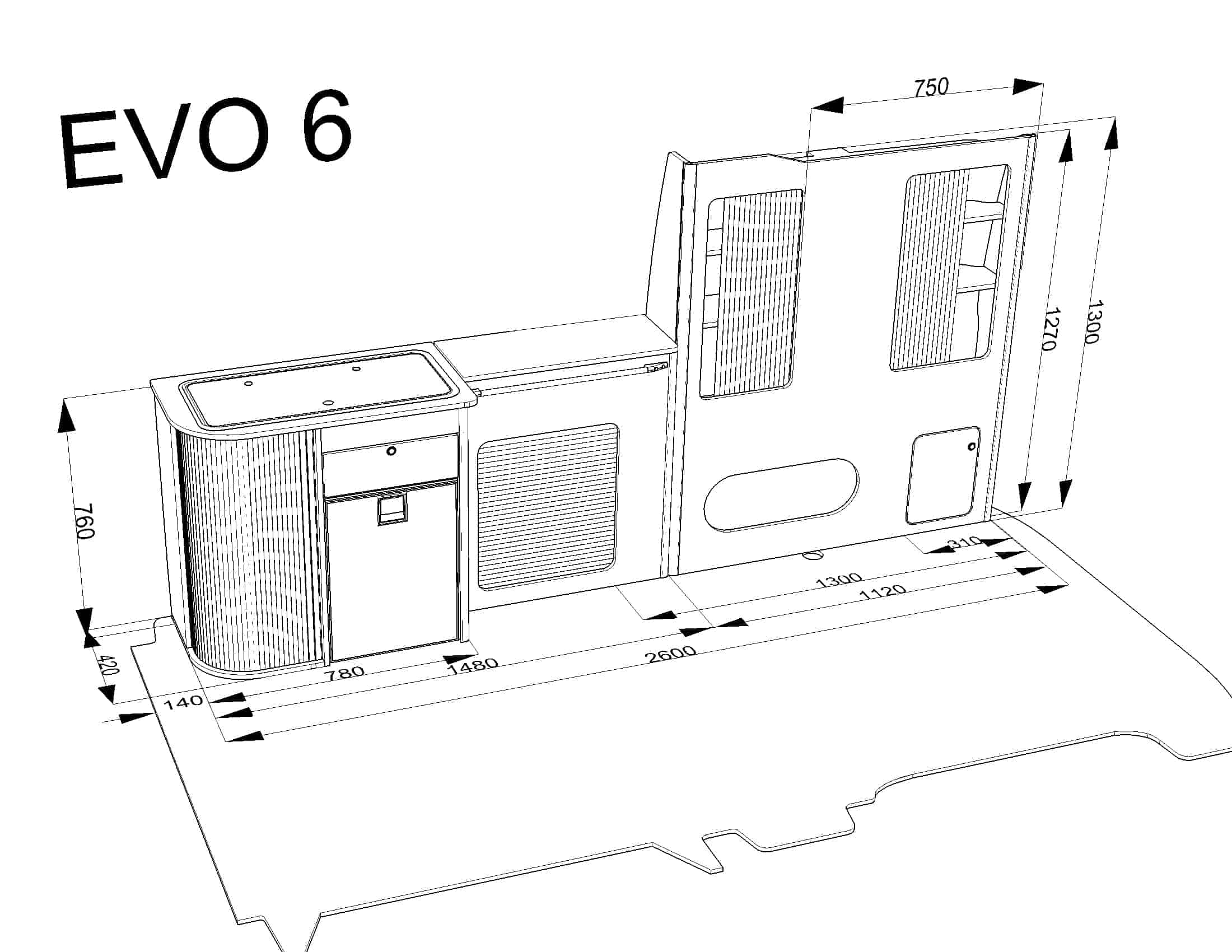

New curved kit, a slightly more challenging construction than our other designs this kit is suitable for people who are handy Diyer’s .

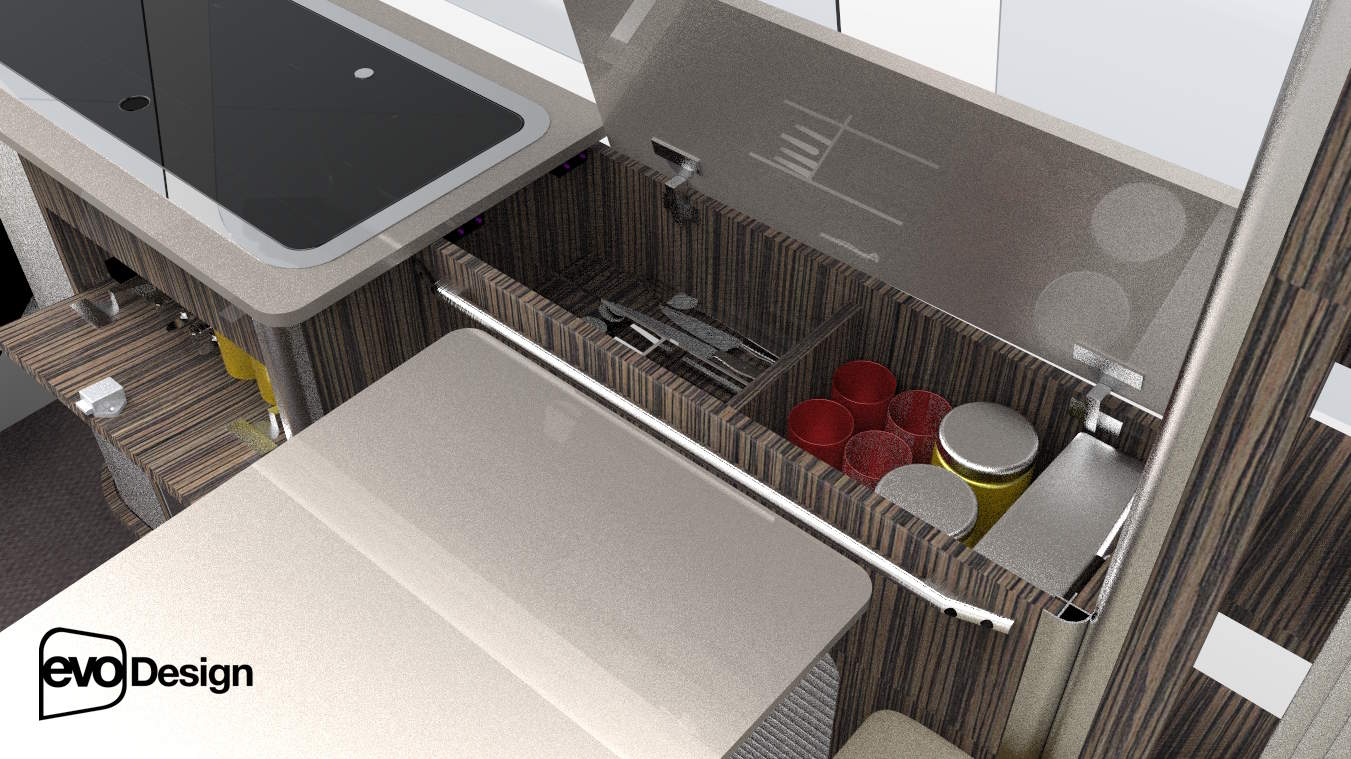

• Side unit with lift up work top flap and storage
• 3 x Sliding tambour door
• Aluminium extrusion to all corners
• Over bed locker for low roof and elevating roof vans
• Front bed panel with door and rear bed panel

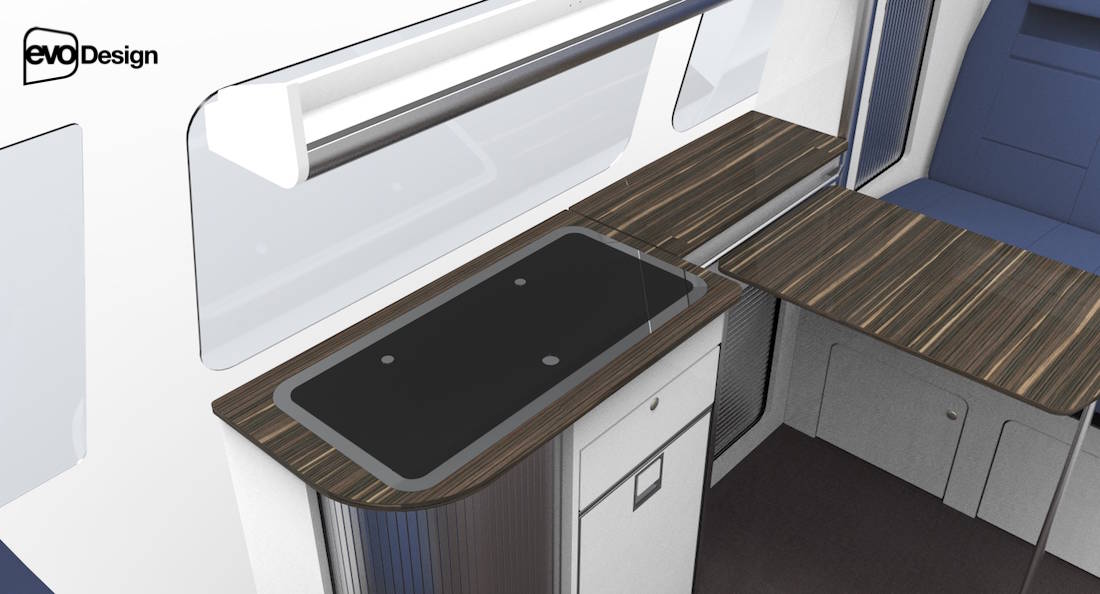

• The worktop cut for Smev 9722 – 2 burner hob and sink. (Smev 9222 will not fit)
• Concealed self close hinges with flush fitting doors
• Table with folding aluminium leg and stainless steel sliding rail system
• All connecting blocks, hinges, grey, black or silver edging, push catches and screws
• Designed for the Vitrifrigo C51I (trimming of van metal floor lip required) or Waeco cr 40 (compressor will need to be positioned in the next cupboard)
• Knock on edging for all exposed edges, the edges are pre slot cut for you to apply
• Designed to be easy to construct with easy mount hinges, slots for aligning the panels and pre drilled hole for the connector blocks
• Available in a range of own light weight ply finishes
• Worktop and Table can be a different finish
• Edging: Silver, Black or Dark Grey
• Works with Scopema RIB seat 1300mm (max length 1860mm)
• Works with both low roof and elevating roof conversions
• Front loading fridge, with storage flap above

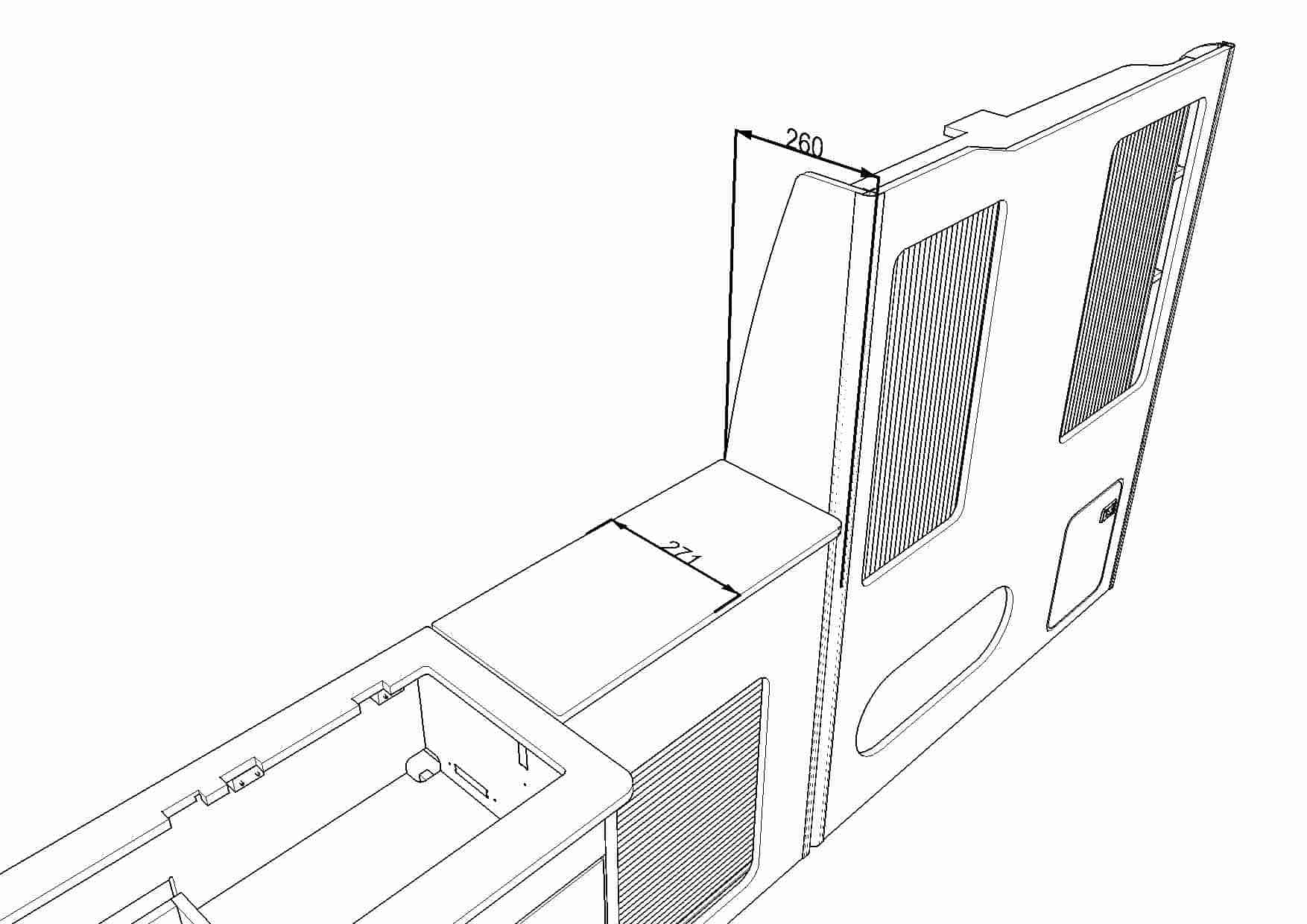

• Narrow part of worktop lifts up to provide easy access, at only 270mm deep it allows space for a 1300mm wide bed

**Does not include

• smaller swing out table
• LED light shelf
• under bed electrical box

NOTE: if using a 49/50L fridge, it sits further back in this unit (see images) which requirers the internal metal work of the van to be cut.

Does not fit a twin sider van due to the thicker C pillar with our some customer modification. Only the work top will fit and the under units will need additional scribing to fit a twin slider.
